XTool A80 Car Diagnostic Tool User Guide

Tips and guides for Xtool A80 owners:



（1）Battery voltage range on the car: +9~+36VDC.

（2）When the test harness is unplugged, the application hand pinch the head of the front end of the wire harness to unplug, do not pull the middle segment of the wiring bundle, and the plug connection beam sees the direction of the corresponding interface flat plug, and does not tend to be inserted to avoid damaging the terminal.

（3）When carrying out some special functions tests, users are required to operate the device according to operating instructions. For some tests the vehicle has to meet certain requirements, for example: engine temperature 80℃/105℃, turn off loads (such as headlights, air-conditioner, etc.), put accelerator pedal in released position, etc.

（4）As the domestic models equipped with the electronic control system is messy, such as the failure to test or test data is not correct, consider the selected menu and the measured electronic control system is appropriate, you can find the vehicle ECU, through the ECU sticker model for menu selection.

（5）You may not have a software upgrade or consult with the company's technical services when you do not find the vehicle or electronic control system in the A80 BT test menu.

（6）It is forbidden to use the wiring harness of the non-Xtool technology company to test the connection to avoid unnecessary loss.

（7）In A80 BT and vehicle communication, the direct shutdown is prohibited. You should cancel the task before returning to the main interface for shutdown.

（8）The use of A80 BT should be lightly handled, as far as possible to avoid vibration or impact. To ensure the service life of the touch-screen, touch the screen gently.

（9） During long period of non-use, please disconnect the power and then turn off the A80 BT unit.

（10）How to activate and update Xtool A80

Xtool x100 pad 2 vehicle test

Eobdtool.co.uk gather x100 pad 2 feedback on what is working. Generally speaking, it works great on many car models.



Here we go from one vehicle to another one:

Citroen c3 2008 read pin code and add key okay
Citroen c4 2010 add key okay

Chevy:
onix 2014 add key okay
cruze 2013 add key okay
cobalt 2015 add key okay

open/Chevy:
montana 2009 read pin code and add key okay
corsa c 2010 brazilian model add key is okay

Ford:
fiesta 2011 add key okay
focus 2012 add key okay
focus titaniun 2014 add key okay

Renault:
sandero 2014 (old version) add key okay,
sandero 2009 , add key okay
kangoo 2011 add key okay,

Peugeot:
207 2010 add key okay
206 2007 add key okay

Honda:
civic 2011 add key okay
civic 2007 add key okay

Honda civic 2002 id48 add key ok!

VW:
golf 2003 read add key okay
gol 2012 g5 add key okay
voyage 2009 add key okay
santana 2005 add key okay
parati 2007 add key okay
fox 2008 add key okay,

Vw Sharan 2003 add key ok
Vw golf4 2001 no pin code reading, program key ok.

Vw Passat 2004 read pin code ok program key ok!

Added a key on a Skoda Octavia 2009.3 mins job

Fiat uno way 2013 dash ,, read pin code, make a dealer key , and add key is okay,

Ford C-max 2011 add key ok.

Dacia sandero 2016 key and pin code okey.

Dacia Sandero Stepway 2012 program remote ok. You have to read pin first and it's the pin 2 the one that's needed for programming.

Toyota corolla 2015 Brazilian version okay

Toyota hilux 2013 transponder g ok
Toyota 4 runner 2012 4d67 ok

blazer 2014 okay add key ,
Honda hr 2015 add key okay
Kia sportage 2015/16 add key okay
Hyundai hb20 2016 add key okay ,

fiat uno 2007 , key prepared by effi and added by pad 2 obd connection + pin code,,
fiat palio fire economy 1.0 year 2010 key added by pad 2 ,, same as fiat uno
fiat strada , 2009 and 2008 ,, same as uno and palio
all them imobox 1k59h,,

fiat doblo 2003 , key prepared by effi and added by pad 2
fiat siena 2001 , key prepared by effi and added by pad 2
fiat palio wekend 2002 key prepared by effi and added by pad 2
all them same body computer ,, 93lc66 ,,
big motherboard and small motherboard,

Fiat:
palio 2005 bc 1k79x
palio 2011 bc 1k79x
siena 2007 bc 1k79x
strada 2009 bc 1k79
all them added key okay by obd +pin code,, key prepared by zed bull + effi,,

Fiat gran siena 2014
key prepared by effi+upa+zed bull ,
and key added by pad2 by obd ,,
bcm 326 g .,

Mitsubishi asx 2013 , transponder prepared by handy baby
and added by pad 2

LR Sport 2009 add Chinese remote key OK
RAM 1500 2012 add Fobik OK

Nissan note 2015 ok

Clio 2 ph2 2005, auto pin and program 7946: OK
Scenic 2 2006, auto pin and program card: OK
Scenic 2 2009, read pin but wrong, use FnR to finish the card.

Mazda bt50 2017 odometer change work!!! in 30 seconds.

I've did several Megane Scenic 2 before 2008 very well. After 2008, Xpad2 read wrong pincode.
But with correct pin, it program OK card.

It works 100% on renault 2015+ in Brazil.

Seat altea 1.9 tdi 2008 add new remote (wich is programed by vvdi tool) succes!!
key adding nit tryed( don't have pin pin read fail) new id48 copyed by silca rw4+.

Megane/scenic (2006 check one more time) read pin code ok ,add key card success.
Peugeot 207 2006 add new key/remote success.

Nissan Navara 2009. Read BCM code ok program key communication fault. I finished work fvdi 2014.

Renault logan 2006 chip with preload you do not have to take pincode.

2010 Peugeot 206 read pin code ok, add key ok!

2009 Vauxhall Astra add key not working
2010 VW Tiguan mileage adjustment works but out by 200 miles ( 5 mins start to finish )
Both UK cars.

2010 VW Tiguan added and remote ok
Beware xtool 100 pad 2 big draw on battery advise battery kept stable while using.

206+ 2010 add remote key: F108, ikey820 failed read pin.
X100 pad 2 read pin in 2 minutes.
Program remote key Ok. Under system 3(K)

xsara picasso 2005 year read pin code (type3 K)ok program key ok!Better than x300dp plus!

Remote key with pcf7936.

Mazda 3 2008 Synchronization ecu immo ok
Ford ranger transponder 80 bits ok

Ford Mustang 2013 add key ok!

Citroen Berlingo 2008year read pin code (type3)ok,add remote key ok!

It could read pin even Akl, tested.

Kangoo 2 2014 wrong pin, ikey 820 failed too and solved with FVDI2014 in 3mn remote key 7946.

smart fourtwo 2012...add (3 button) key all ok.

25th January, 2019 update:

New update for Renault release. Add support upto 2016 (Master3) Twingo 2 upto 2014.
Megane/Scenic, Laguna from 08-, but no one know if Megane 3 is supported.
Dacia upto 2013.

Chevro Lacetti 2008 AKL OK. Need 2x ID60 ( remote use KD)
Clio 3 remote key 7947: OK
Disco 4, add smart OK ( Hitage Pro)
Toyota Quantum add H key OK.
Ranger 2017 Hitag Pro: add key OK
Vauxhall Combo 2014 add remote key OK ( use Fiat Fiorino, read pin, precode PCF7946)
Berlingo 2007 AKL, read pin and program OK.
Golf 2010 4th immo: NEC + 24C32, read immo data, make dealer key OK.

Ford EcoSport 2015 non bladed key programmed transponder and remote OK
All keys lost.

Golf 7 MQB key, add key with KC100: OK



ford transit 2011 europe
add blue key ok

2012 Toyota Camry ok
2015 Mazda 3 adding smart key ok

Tested all Renault in menu , last update resolve all bugs , very good tool for French cars ( including PSA )
Kangoo 2 ; key programming OK
Megane 2 ; card program OK
Twingo 2 ; key programming OK , remote control OK
Clio 3 ; key programming OK
Master 3 ; Key programming OK

Golf 6 2010, copy thansponder OK, read immo data OK, make dealer key OK.

Common chinese id48 blank with kc100

2015 JEEP Grand Cherokee - read code + added key Hitag2 proximity OK !

Xtool Pad2 reviews is temporarily updated here, more will be updated...

Source: https://www.digital-kaos.co.uk/forums/showthread.php/647064-x100-pad-2-what-is-working/page11



Source: Xtool x100 pad 2 feedback – works fine on many cars

Xtool EZ400 Pro Supported Vehicle

Xtool EZ400 Pro can perform OBD2 diagnosis, IMMO and service reset functions (Oil Service + EPB + TPS), it has a wide coverage incl. European, American, Australian, Asian, China etc. This post is on Xtool EZ400 Pro Coverage.

Xtool EZ400 Pro coverage:

http://www.eobdtool.co.uk/upload/pro/ez400-pro-english-software-list.xlsx

Xtool EZ400 Pro newest coverage can be checked on the official site:

http://www.xtooltech.com

Xtool EZ400 Pro Coverage (Images):

For European:



For American:



For Australian:



For Asian:





For Chinese:



Xtool EZ400 Pro has service reset functions:



That's all.

Thanks





Source:



Xtool EZ400 Pro Car List for OBD2, IMMO, Service

How to Deal with Xtool X100 Pad “Please input security code”

Recently, one of our XTOOL X100 Pad users asked us for help because his X100 Pad needs security code. When he tried to change the dash mileage and entered the odometer correction function menu, the X100 PAD screen appeared  “Please input the security code“.

How to deal with this?

Xtool X100 PAD requires to enter security code ONLY when do odometer correction function  for GM car models.  That means other car brands and functions do not require the code to enter.

When you enter the odometer correction function menu and select the vehicle model, the key programmer will display a code. Please send the code to us (together with the correct GM model and year, i.e Chevrolet Cruze 2011 + code). Our factory will calculate the security code based on information your provided and send the code to you.

more xtool products you might be interested:

XTOOL X100 Pad2

XTOOL VAG401

EEPROM Adapter Use Guide: Read Pin Code, Initialize Data, Read-Write Chip

EEPROM which developed by XTOOL is a tool which could use to read the chips that need to be removed when reading IMMO pin code. User could remove the chip from Immobiliser or dashboard and then read pin code via EEPROM.

XTOOL EEPROM Adapter is designed for X100 PRO /X200S /X300 PLUS

Chip socket has 3 chip types: 3XXX, 25 (95) XXX and 24XXX

How to connect EEPROM with chip and X100 PRO /X200S /X300 PLUS:

The following will share the EEPROM function like read pin code, initialization data and read- write chip.

Take Changan CX20 for example to show how to read IMMO pin code:

1.  Take apart the EEPROM chip from vehicle control unit.

2.  Find the correct chip socket according to chip type (pay attention: both directions of chip and chip socket should be the same, otherwise password will fail to be read).

3.  Connect EEPROM chip with XTOOL X100 PRO or XTOOL X300 PLUS.

4.  Choose “EEPROM Adapter” and “Read Pin Code” function.

5.  Select car model “Changan”->”C20”

6.  Choose ECU type ”ECU(93C46)’

7.  And the pin code of Changan C30 could be read out

Next, share the guide to initialize data by taking Toyota for example.

1.  Choose “initialize data”-> car model “Toyota”

2.  Chose the initialization type “Smart system initialization”

3.  Then select the detail car model “HIGHLANDER”

4.  Choose the initialization type, pay attention to Immobiliser and ECU type.

5.  Save the file and the xtool will remind you to initialize. Choose yes and initialization will be done.

How EEPROM read or write chip

Before reading or writing chip, please remove the chip from car and connect it with chip holer

1.  Choose ”EEPROM chip read/write” function

2.  Choose the right chip type

3.  Select the file name want to save

4.  Choose the file to recover.

5.  After confirm the right file, the chip is successful read and write.

If you buy xtool x100 pad2 pro on xtooleshop, you could get one EEPROM adapter with your package.

XTOOL EZ400 Pro 2013 Nissan Altima Sedan 20pin Smart Key

This post will share a process about use XTOOL EZ400 Pro to program 2013 Nissan Altima Sedan 20 pin smart key. Here we go

First post the youtube video link of this process so that you could view more details:

Choose “Nissan Infiniti”

Choose “program keys” -> ”select from types” -> “smart key system” -> ”20 pincode”->”type 1” -> “program smart keys”

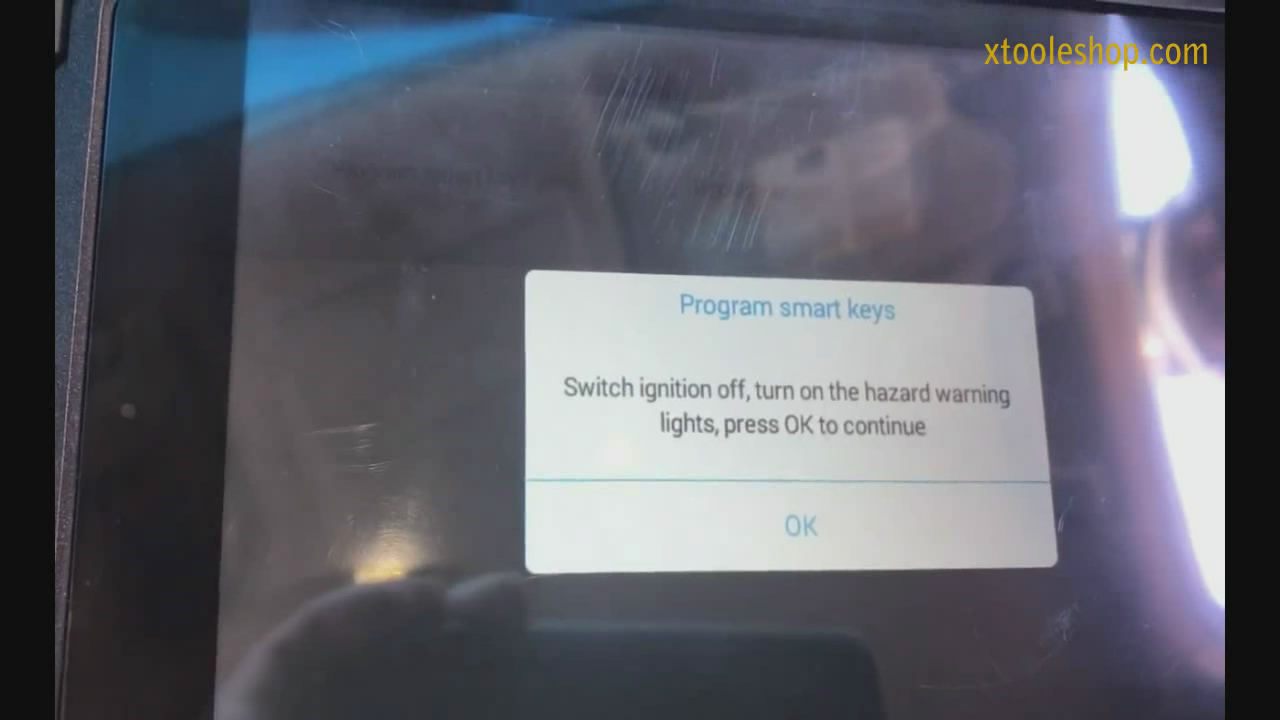

Switch ignition off, turn on the hazard warning lights, press OK to continue

A note before program: next to all smart keys will be erased, you can program up to four smart keys, press YES to continue

Do not press the brakes, press the start button until the ignition switch turned on, press OK to continue

Turn on the ignition switch

Communication and switch ignition off when shows the note like this:

And a note will appear to guide you how to program smart key

Press the start button and release it immediately, then the yellow light will flash on the start button, use a smart that needs to be programmed to be attached to the start button until instrument is lit. then press Yes.

Make sure the immobilizer lights off.

Switch ignition off

After Configuring the system, a note will show you program success and ask you whether to program another key or not.

Press YES to program the next one, press NO to return.

Follow the step as the first programmed keys above to program the next key.

Use the first programmed smart key to close to start button and turn switch ignition on, the buzzer sounds, programming is completed

 original post: http://blog.xtooleshop.com/xtool-ez400-pro-2013-nissan-altima-sedan-20pin-smart-key/

Reviews: What XTOOL X100 Pad2 is Working

Xtool X100 Pad2 is not 100% but seem to be working on most.

citroen c3 2008 read pin code and add key okay

citroen c4 2010 add key okay

chevy:

onix 2014 add key okay

cruze 2013 add key okay

cobalt 2015 add key okay

opel/chevy:

montana 2009 read pin code and add key okay

corsa c 2010 brazilian model add key is okay

ford:

fiesta 2011 add key okay

focus 2012 add key okay

focus titaniun 2014 add key okay

Ford C-max 2011 add key ok.

renault:

sandero 2014 (old version) add key okay,

sandero 2009 , add key okay

kangoo 2011 add key okay,,

Peugout:

207 2010 add key okay

206 2007 add key okay

Honda:

civic 2011 add key okay

civic 2007 add key okay

VW:

golf 2003 read add key okay

gol 2012 g5 add key okay

voyage 2009 add key okay

santana 2005 add key okay

parati 2007 add key okay

fox 2008 add key okay,,

Vw Sharan 2003 add key ok

Vw golf4 2001 no pin code reading, program key ok.

Vw Passat 2004 read pin code ok program key ok!

Fiat:

uno way 2013 dash ,, read pin code, make a dealer key , and add key is okay.

fiat uno 2007 , key prepared by effi and added by pad 2 obd connection + pin code,,

fiat palio fire economy 1.0 year 2010 key added by pad 2 ,, same as fiat uno

fiat strada , 2009 and 2008 ,, same as uno and palio

all them imobox 1k59h,,

fiat doblo 2003 , key prepared by effi and added by pad 2

fiat siena 2001 , key prepared by effi and added by pad 2

fiat palio wekend 2002 key prepared by effi and added by pad 2

all them same body computer ,, 93lc66

big motherboard and small motherboard

Fiat:

palio 2005 bc 1k79x

palio 2011 bc 1k79x

siena 2007 bc 1k79x

strada 2009 bc 1k79

fiat gran siena 2014

key prepared by effi+upa+zed bull

and key added by pad2 by obd

bcm 326 g .

all them added key okay by obd +pin code,, key prepared by zed bull + effi,,

dacia sandero 2016 key and pin code okey

toyota corolla 2015 brazilian version okay

blazer 2014 okay add key ,

honda hr 2015 add key okay

kia sportage 2015/16 add key okay

Hyundai hb20 2016 add key okay

Mitsubishi asx 2013 , transponder prepared by handy baby and added by pad 2

Honda civic 2002 id48 add key ok!

LR Sport 2009 add Chinese remote key OK

RAM 1500 2012 add Fobik OK

Nissan note 2015 ok

Thanks to all the users' real test.

If you plan to have new Xtool X100 PAD2, you can go to www.xtooleshop.com

src: http://www.xtooleshop.com/wholesale/x-100-pad2-expert-with-vw-4th-5th-immo.html
